3.2. Circle Object

The circle is one of the basic shapes and here's how it will look on the screen:

As you noticed by the annotations on the image this object is composed of 3 elements: a shape, an inner text and a label (the last two being optional) but we'll get into this a little ahead.

3.2.1. Constructor and Parameters

The class is called CircleObject, and to create an instance of a class in JavaScript all you have to do is the same that you would do in any other OO language:

var newObj = new CircleObject(coreObj, id, cx, cy, radius, text, label, shapeClass, textClass, labelClass);

Now let's understand all those parameters:

• coreObj: this parameter is the reference to the instance of CoreObject; as you will see later on, CoreObject is responsible to keep track of all existing objects. With this reference, this object will be able to interact with the others if needed (for example in the Learning Mode).
• id: an unique text, to be used as a "key" for this instance.
• cx: the cx coordinate of this object inside the svg container.
• cy: the cy coordinate of this object inside the svg container.
• radius: the radius of this object.
• text: the inner text of this object (b. on the image above).
• label: the label of this object (c. on the image above).
• shapeClass: the CSS class of the shape SVG element.
• textClass: the CSS class of the text SVG element.
• labelClass: the CSS class of the text SVG element.

As you will be able to notice in the javadoc, some of this parameters are not obligatory (like text, label, classes), making it easy to customise a shape. Regarding the classes, it is always recommended to send "null" as parameter since all instances will inherit a default class, unless you would like it to have a different look.

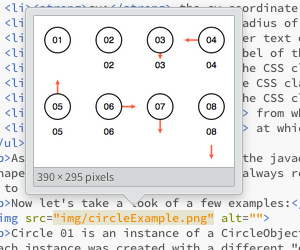

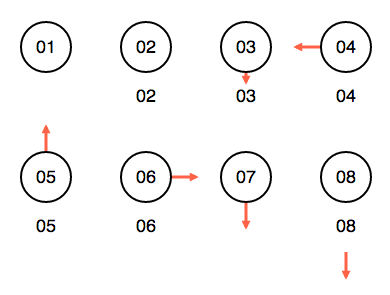

Now let's take a look of a few examples:

Circle 01 is an instance of a CircleObject without a label, while Circle 02 have one. All the other Circles have an EdgeObject associated with them, where each instance was created with a different "outgoingPoint" parameter, which means that when the pointer is null (in here indicated by the color red) it will point into a different direction. When leaving from the bottom, if the CircleObject has a label, the Edge will take this into consideration (as seen in Circle 08).

3.2.2. Fields

These fields will store all the important data regarding this instance.

3.2.2.1. Core

this.coreObj = coreObj;

Store the reference to the object sent as coreObj parameter.

3.2.2.2. Offset Values

this.textAdjust = defaultProperties.text["font-size"]/3;
this.labelAdjust = defaultProperties.shape.radius + 30;

When drawing the properties onto the screen, the inner text and the label may need some positioning adjustments, which will be stored in these.

3.2.2.3. Property Map

this.propObj = {
  "id": id,

  "shape": {
    "class": shapeClass,
    "cx": cx,
    "cy": cy,
    "r": radius,
    "fill": defaultProperties.shape.fill.default,
    "fillOpacity": defaultProperties.shape["fill-opacity"].default,
    "stroke": defaultProperties.shape.stroke.default,
    "strokeWidth": defaultProperties.shape["stroke-width"].default
  },

  "text": {
    "class": textClass,
    "x": cx,
    "y": cy + this.textAdjust,
    "fill": defaultProperties.text.stroke.default,
    "fontFamily": defaultProperties.text["font-family"],
    "fontWeight": defaultProperties.text["font-weight"],
    "fontSize": defaultProperties.text["font-size"],
    "textAnchor": defaultProperties.text["text-anchor"],
    "text": text
  },

  "label": {
    "class": labelClass,
    "x": cx,
    "y": cy + this.labelAdjust,
    "text": label
  },

  "toRemove": false,

  "isValidTarget": false
}

This is the most important field of this object. It is a property map that will store all the data regarding the shape, the text, the label and other variables used for functionality. When drawing this object on the screen these values will be taken into consideration.

But as you might have noticed there's two properties in there that doesn't seem quite like "graphical", and you're right. Each one is a boolean flag to control an specific behavior:

• toRemove: if true, this object will be deleted when the next draw function is called.
• isValidTarget: if true, the User Objects will be able to interact with this object.

3.2.2.4. Edges

this.edgeList = [];

This is an array that will contain all the instances of EdgeObject that are binded to this object.

3.2.2.5. Reposition offset

this.widthAdjust = [];

This is an array that will contain the offsets to redraw this shape on the screen based on data from its parent and children.

3.2.3. Methods

Let's first take a look at all the methods from this class:

this.getAttributes = function () {...}
this.getEdges = function () {...}
this.getID = function () {...}
this.setShapeClass = function (newClass) {...}
this.getShapeClass = function () {...}
this.moveShape = function (x, y) {...}
this.getCoordinateCX = function () {...}
this.getEdgeCoordinateX = function (point) {...}
this.getCoordinateCY = function () {...}
this.getEdgeCoordinateY = function (point) {...}
this.setRadius = function (newRadius) {...}
this.getRadius = function () {...}
this.setFill = function (newFill) {...}
this.setFillOpacity = function (newOpacity) {...}
this.setStroke = function (newStroke) {...}
this.setStrokeWidth = function (newStrokeWidth) {...}
this.setText = function (newText) {...}
this.getText = function () {...}
this.setTextClass = function (newClass) {...}
this.getTextClass = function () {...}
this.setFontColor = function (newColor) {...}
this.setLabel = function (newLabel) {...}
this.setLabelClass = function (newClass) {...}
this.getLabelClass = function () {...}
this.setToRemove = function (bool) {...}
this.getToRemove = function () {...}
this.setIsValidTarget = function (bool) {...}
this.getIsValidTarget = function () {...}
this.addEdge = function (edgeObj) {...}
this.getEdgeCount = function () {...}
this.repositionDAG = function(x, y, side, orientation) {...}
this.draw = function (duration) {...}
this.remove = function (duration) {...}
this.cloneObject = function () {...}
this.cloneProperties = function (prop) {...}
this.cloneEdges = function (edges) {...}

Most of them are just getters and setters for the property map and when creating your own visualisation they are the only ones you should worry. The other methods are used internally by the framework, so here's a brief explanation on them:

3.2.3.1. Add Edge

This method will add an instance of EdgeObject to this object edgeList[]. Edges are always stored in the origin object, even if the edge is bidirectional.

3.2.3.2. Reposition DAG

Knowing where to create each shape can get tricky when dealing with more complex data structures as a binary search tree, for example. With this function you'll be able to pass null as parameter for the coordinates, and the shape position will be calculated automatically. However this function only works with Directed acyclic graph.

3.2.3.3. Draw and Remove

The Draw method will get the data from the property map and bind it to HTML elements created with D3, making them appear on the screen or update the looks of an existing object.

The Remove method will delete the HTML elements, removing the object from the screen.

3.2.3.4. GetEdgeCoordinate

An EdgeObject is the representation of the Line SVG element, which goes from point (x1,y1) to point (x2,y2). When getting these coordinates this function will be called, returning them while taking into consideration the properties of this object.

3.2.3.5. Cloning

Cloning objects is very important in the way this framework was designed and this will become clearer after we study the CoreObject. There is one main function that calls two subfunctions:

this.cloneObject = function () {
  var clone = new CircleObject(this.coreObj);
  clone.cloneProperties(this.propObj);
  clone.cloneEdges(this.edgeList);

  return clone;
}

Which calls:

this.cloneProperties = function (prop) {
  this.propObj = clone(prop);
}

this.cloneEdges = function (edges) {
  var newList = [];
  var clone;

  for (var key in edges) {
    clone = new EdgeObject(this.coreObj);
    clone.cloneProperties(edges[key].getAttributes());

    newList[key] = clone;
  }

  this.edgeList = newList;
}

These functions create an exact clone of the current instance, without memory references, what will enable the animation to happen step by step.

When creating a clone, you have to create a new instance of the current object (SquareObject in this case) and the only parameter required is coreObj. The subfunctions will take care of copying the property map and the edge array.

3.3. Edge Object

The edge (in SVG known as line) is one of the basic elements, used to connect two shapes. It might also have a marker element, in case the edge needs to be directed.

There are three types of edges:

• Undirected (a): connect the two shapes, without any specified direction.
• Unidirectional (b): connect the two shapes, in this case from 02 to 03.
• Bidirectional (c): connect the two shapes, in both directions.

Although and EdgeObject is connecting two shapes it only belongs to the edgeList[] as we've mentioned earlier. This happens for two reasons: it makes the management of edges easier for the developer and during the drawing operations it will avoid redundancy.

3.3.1. Constructor and Parameters

The class is called EdgeObject, and to create an instance of a class in JavaScript all you have to do is the same that you would do in any other OO language:

var newObj = new EdgeObject(coreObj, id, idObjectA, idObjectB, edgeClass, edgeType, outboundPoint, inboundPoint);

Now let's understand all those parameters:

• coreObj: this parameter is the reference to the instance of CoreObject; as you will see later on, CoreObject is responsible to keep track of all existing objects. With this reference, this object will be able to interact with the others if needed (for example in the Learning Mode).
• id: an unique text, to be used as a "key" for this instance.
• idObjectA: the id of the origin object.
• idObjectB: the id of the destination object. If null a small edge will be created following the orientation of the origin point (as seen in the square and circle examples).
• edgeClass: the CSS class of the line svg element.
• edgeType: indicates whether the edge is unidirectional (from A -> B), bidirectional or has no direction.
• outboundPoint: indicates from which position of the shape the edge will originate.
• inboundPoint: indicates at which position of the shape the edge will arrive.

As you will be able to notice in the javadoc, some of this parameters are not obligatory (like idObjectB, class), making it easy to customise an edge. Regarding the class, it is always recommended to send "null" as parameter since all instances will inherit a default class, unless you would like it to have a different look.

3.3.2. Fields

These fields will store all the important data regarding this instance.

3.3.2.1. Core

this.coreObj = coreObj;

Store the reference to the object sent as coreObj parameter.

3.3.2.2. Property Map

this.propObj = {
  "id": id,

  "idObjectA": idObjectA,

  "idObjectB": idObjectB,

  "type": edgeType,

  "outboundPoint": outboundPoint != null ? outboundPoint : EDGE_POSITION.CENTER,

  "inboundPoint": inboundPoint != null ? inboundPoint : EDGE_POSITION.CENTER,

  "markerStart": idObjectB != null ? defaultProperties.marker.start.default : defaultProperties.marker.start.null,

  "markerEnd": idObjectB != null ? defaultProperties.marker.end.default : defaultProperties.marker.end.null,

  "edge": {
    "class": edgeClass,
    "x1": null,
    "y1": null,
    "x2": null,
    "y2": null,
    "stroke": idObjectB != null ? defaultProperties.edge.stroke.default : defaultProperties.edge.stroke.null,
    "strokeWidth": idObjectB != null ? defaultProperties.edge["stroke-width"].default : defaultProperties.edge["stroke-width"].null
  }
}

This is the most important field of this object. It is a property map that will store all the data regarding the edge and other variables used for functionality. When drawing this object on the screen these values will be taken into consideration.

3.3.3. Methods

Let's first take a look at all the methods from this class:

this.getAttributes = function () {...}
this.getID = function () {...}
this.getIdObjectA = function () {...}
this.setIdObjectA = function (newID) {...}
this.getIdObjectB = function () {...}
this.setIdObjectB = function (newID) {...}
this.getType = function () {...}
this.setType = function (newType) {...}
this.setOutboundPoint = function (newValue) {...}
this.getOutboundPoint = function () {...}
this.setInboundPoint = function (newValue) {...}
this.getInboundPoint = function () {...}
this.setMarkerStart = function (newMarker) {...}
this.setMarkerEnd = function (newMarker) {...}
this.setEdgeClass = function (newClass) {...}
this.getCoordinateX1 = function(){...}
this.getCoordinateY1 = function(){...}
this.getCoordinateX2 = function(){...}
this.getCoordinateY2 = function(){...}
this.setStroke = function (newStroke) {...}
this.setStrokeWidth = function (newStrokeWidth) {...}
this.calculatePath = function (isClone) {...}
this.repositionDAG = function (x, y, side, adjustLeft, adjustRight, orientation) {...}
this.draw = function (duration) {...}
this.remove = function (duration) {...}
this.cloneProperties = function (prop) {...}

Most of them are just getters and setters for the property map and when creating your own visualisation they are the only ones you should worry. The other methods are used internally by the framework, so here's a brief explanation on them:

3.3.3.1. setIdObjectA

As we've mentioned earlier the instance of this object is added to ObjectA's edgeList[], so when changing this object (in a tree rotation for example) a special function will be called, that will take care of removing the edge from the old object edgeList[] and adding it to the new one.

3.3.3.2. Draw and Remove

The Draw method will get the data from the property map and bind it to HTML elements created with D3, making them appear on the screen or update the looks of an existing object.

The Remove method will delete the HTML elements, removing the object from the screen.

3.3.3.3. calculatePath

An EdgeObject is the representation of the Line SVG element, which goes from point (x1,y1) to point (x2,y2). The two objects which this edge is connecting determine this points. When this class is instantiated, or any of the two objects is changed, this function will be called getting the coordinates needed.

3.3.3.4. Cloning

Cloning objects is very important in the way this framework was designed and this will become clearer after we study the CoreObject. Here is the cloning function for this object:

this.cloneProperties = function (prop) {
  this.propObj = clone(prop);
  this.calculatePath();
}

Shapes that possesses edges will call this function when cloning their edges. This will return a deep copy of this object properties, without the memory references.

3.4. User Object

In development. This guide will be updated as this new functionality is finished.

3.5. Managing all this: Core Object

CoreObject.js is the most important file of this framework. It works as an interface between all the other classes and your JavaScript file containing the data structure's algorithm. In this sections we will study all Core methods and understand when their use.

3.5.1. Constructor

This class shall be instantiated in any algorithm javascipt file without any parameters, like this:

var coreObj = new CoreObject();

With this instance you'll be able use of this class to create new shapes, manage and animate them.

3.5.2. Fields

All fields, except for objectList are for private use. Let's understand each of them:

• this.objectList = [];


  This array will store instances of all existing objects.

• this.stateList = [];


  This array will store all states used to create a step-by-step animation.

• this.stateCount = 0;
  this.stateAnimation = 0;


  stateCount stores how many states exists while stateAnimation store which step is currently on the screen.

• this.animationStatus = ANIMATION_STATUS.STOP;


  This variable is used to control the playing status of the animation.

• this.variableWatchList = [];
  this.logList = [];


  Those two arrays are used to manage the content of the log panel and the variable watch panel.

3.5.3. Validation Methods

Summary:

this.isLearningMode = function () {...}
this.newActionEnabled = function () {...}
this.displayAlert = function (message) {...}

3.5.3.1. isLearningMode

In development. This guide will be updated as this new functionality is finished.

3.5.3.2. newActionEnabled

In development. This guide will be updated as this new functionality is finished.

3.5.3.3. displayAlert

This function is used to display an alert message for the user. There are three types of alerts: Positive, which displays the message in a green box; Negative, which displays the message in a red box; Information, which displays the message in a blue box. It can be called like this:

coreObj.displayAlert(ALERT_TYPES.NEGATIVE, "Please finish or cancel the current action before making any further changes.");

Which will result in:

3.5.4. Animation Methods

3.5.4.1. State Methods

To have a step-by-step animation of the algorithms we make use of "states". Just like in state machines, we save the current state of each existing object in a given time, creating a series of snapshots so we can iterate through them later.

When a visualisation page is called the state list should be initialised, like this:

var StackArray = function(){
  var self = this;
  var coreObj = new CoreObject();

  coreObj.newStateList();

  ...
}

This will initialise all variables used for controlling the states.

Then it's time to begin saving states, but first let's understand what composes a state:

var state = {
  data : null,
  log : null,
  variables : null,
  algorithmLine : null
};

• data will store the copy of all existing objects with their current state.
• log will store a copy of the log messages displayed in this state.
• variables will store a copy of the variable values in this state.
• algorithmLine will store which algorithm line should be highlighted in this state.

Now let's see how the states should be saved in order to make an animation. To do this we'll use the enqueue method, from a Queue Array Implementation:

this.enqueue = function (item) {
  if (tail.value >= cap || item.trim() == "") {
    coreObj.displayAlert("The input should not be empty.");
    return false;
  }

  this.generateAlgorithm(ENQUEUE);

  mArray[tail.value].setText(item);
  coreObj.saveState("Inserting the new value", 0);

  tail.value++;
  tail.drawing.setFill(defaultProperties["shape"]["fill"]["update"]);
  coreObj.saveState();

  tail.edge.setIdObjectB(mArray[tail.value].getID());

  tail.drawing.setText(tail.value);
  tail.drawing.setFill(defaultProperties["shape"]["fill"]["default"]);
  coreObj.saveVariableToWatch("head", head.value);
  coreObj.saveVariableToWatch("tail", tail.value);
  coreObj.saveState("Update the tail pointer.", 1);

  coreObj.begin();
}

To save a state only two things are required, both being optional: a message that will be printed on the log panel, and which algorithm line that will be highlighted. Variables should be saved separately (as seen in lines 20 and 21), this allows the programmer to save as many variables as he want.

Here's a summary of the animation methods, with a brief description of what they do:

this.newStateList = function () {...} // Erase all data from the current state list
this.saveState = function (logMessage, algorithmLine) {...} // Save a new state to the list

3.5.4.2. Control Methods

After you've saved all desired states is time to play with them. In order to do this there's only one function that you have to call:

coreObj.begin();

This function will begin playing the states related to the last action performed.

Functions such as play, pause, next, previous are called straight from the HTML file, to iterate through the steps of the animation, and they all will call draw, sending the a state to be displayed on the screen.

All this functions take into consideration the user speed preference, which is accessible with the getAnimationDuration function.

Here's the list of the mentioned functions:

this.getAnimationDuration = function () {...} // Get the user preference for the animation duration
this.draw = function (currentState, duration) {...} // Draw one state from stateList on the screen, applying all changes made
this.pause = function () {...} // Pause the animation
this.next = function (duration) {...} // Call the next step of the animation
this.previous = function () {...} // Call the previous step of the animation
this.play = function (duration) {...} // Play the animation

3.5.4.3. Panel Methods

Here's the list of all the core functions that interact with the panels:

this.clearLog = function () {...}
this.saveLogMessageToList = function (message) {...}
this.printLog = function (logObj) {...}
this.clearVariableWatch = function(){...}
this.saveVariableToWatch = function (variableName, variableValue) {...}
this.printVariableWatch = function (variablesObj) {...}
this.clearAlgorithm = function () {...}
this.addAlgorithmLine = function (id, instruction) {...}
this.highlightAlgorithm = function (lineNumber) {...}

But when creating your own visualisation you'll only have to call 3 of them:

• saveVariableToWatch: to save the current state of a variable, to be displayed in the Variable Watch Panel.
• clearAlgorithm: before running a method, to display the right set of instructions.
• addAlgorithmLine: when creating sets of algorithm.

All other methods are called internally in the core, so you don't have to worry.

3.5.5. Factories

All basic items that we've studied before must be created or deleted using the active instance of CoreObject, which will return the just created instance reference to the algorithm JavaScript file. This is necessary so the core can manage and organise all existing objects, making the framework more consistent, otherwise changes made to the object graphics wouldn't appear on the screen. With the reference that is returned you will be able to interact with each instance, applying any desired graphic changes.

Here's how these functions look like:

/**
  * Create a square graphic element.
  *
  * @param {!(String|Number)} id : the id of this object.
  * @param {?Number} x : the x coordinate of this object inside the svg element.
  * @param {?Number} y : the y coordinate of this object inside the svg element.
  * @param {?String=} text : the inner text of this object, that will be displayed on the screen.
  * @param {?String=} label : the text underneath this object, that will be displayed on the screen.
  * @param {?String=} shapeClass : the CSS class of the shape svg element.
  * @param {?String=} textClass : the CSS class of the text svg element (inside the shape).
  * @param {?String=} labelClass : the CSS class of the text svg element (underneath the shape).
  *
  * @return {SquareObject} : the new object.
  */
this.newSquareObject = function (id, x, y, text, label, shapeClass, textClass, labelClass) {
  if (this.objectList[id] != null) {
    throw new Error("This id is already in use by another object.");
    return;
  }

  this.objectList[id] = new SquareObject(this, id, x, y, text, label, shapeClass, textClass, labelClass);

  return this.objectList[id];
}

/**
  * Create a circle graphic element.
  *
  * @param {!(String|Number)} id : the id of this object.
  * @param {!Number} cx : the cx coordinate of this object inside the svg element.
  * @param {!Number} cy : the cy coordinate of this object inside the svg element.
  * @param {!Number} radius : the radius of this object.
  * @param {?String=} text : the inner text of this object, that will be displayed on the screen.
  * @param {?String=} label : the text underneath this object, that will be displayed on the screen.
  * @param {?String=} shapeClass : the CSS class of the rect svg element.
  * @param {?String=} textClass : the CSS class of the text svg element (inside the shape).
  * @param {?String=} labelClass : the CSS class of the text svg element (underneath the shape).
  *
  * @return {CircleObject} : the new object.
  */
this.newCircleObject = function (id, cx, cy, radius, text, label, shapeClass, textClass, labelClass) {
  if (this.objectList[id] != null) {
    throw new Error("This id is already in use by another object.");
    return;
  }

  this.objectList[id] = new CircleObject(this, id, cx, cy, radius, text, label, shapeClass, textClass, labelClass);

  return this.objectList[id];
}

/**
  * Create an edge graphic element, that will be stored in the origin object edgelist[].
  *
  * @param {!(String|Number)} id : the id of this object.
  * @param {!String} idObjectA : the id of the origin object.
  * @param {?String=} idObjectB : the id of the destination object. If null a small edge will be created following the orientation of the origin point.
  * @param {?String=} edgeClass : the CSS class of the line svg element.
  * @param {!Const} edgeType : a constant value (defined at 'animation/constant.js' : EDGE_TYPE) indicating whether the vertex is unidirectional (from A -> B), bidirectional or has no direction.
  * @param {?Const=} outboundPoint : a constant value (defined at 'animation/constant.js' : EDGE_POSITION) indicating from which point of the shape the edge will originate. If null the CENTER position will be used.
  * @param {?Const=} inboundPoint : a constant value (defined at 'animation/constant.js' : EDGE_POSITION) indicating at which point of the shape the edge will arrive. If null the CENTER position will be used.
  *
  * @return {EdgeObject} : the new object.
  */
this.newEdgeObject = function (id, idObjectA, idObjectB, edgeClass, edgeType, outboundPoint, inboundPoint) {
  var newEdge = new EdgeObject(this, id, idObjectA, idObjectB, edgeClass, edgeType, outboundPoint, inboundPoint);

  this.objectList[idObjectA].addEdge(newEdge);

  return newEdge;
}

To better understand this let's look at an example:

this.push = function(item) {
  ...

  top = new Node();
  top.item = item;
  top.next = oldtop;
  top.drawing = coreObj.newSquareObject(++counterID, 150, 200, item, null, "node", null, null);
  top.edge = coreObj.newEdgeObject(counterID, top.drawing.getID(), null, null, EDGE_TYPE.UNIDIRECTIONAL, EDGE_POSITION.BOTTOM, EDGE_POSITION.TOP);

  coreObj.saveState("Inserting new node.", 0);

  ...
}

For deletions we have those two functions:

/**
  * Set a flag for the object to be removed on the next draw action.
  *
  * @param {!(String|Number)} id : the id of the item to be removed.
  */
this.removeShape = function (id) {
  this.objectList[id].setToRemove(true);
}

/**
  * Set a flag for all objects of the selected class to be removed on the next draw action.
  *
  * @param {String} selectedClass : the class of the items to be removed.
  * @param {Number} duration : the duration of the animation.
  */
this.removeAll = function (selectedClass, duration) {
  for (var key in this.objectList) {
    if (this.objectList[key].getShapeClass() == selectedClass) {

      this.objectList[key].setToRemove(true);
    }
  }
}

The first one is used to delete a single item, while the second will delete all items that match the provided class (for example deleting all nodes when clearing a linked list visualisation).

3.5.6. Object Interaction Methods

There are some methods that are called from the basic shapes to interact with each other, but mediated by the core. When creating a new visualisation you don't have to use any of these functions but let's take a look to understand what each of them do:

this.updateEdgeList = function (oldObjID, newObjID, edgeID) {...} // Edges are stored in this.edgeList of their origin object. If the origin has changed, the lists have to be updated.

3.5.7. Other Methods

Summary:

this.clearCustomClasses = function () {...}
this.repositionDAG = function (obj, x, y, orientation) {...}
this.createGroups = function () {...}
this.createMarkers = function () {...}

During your animation you may change the shape classes to better illustrate your algorithm. With clearCustomClasses you can reset their shape back to their original appearance at once.

repositionDAG is used to begin repositioning all the shapes on the screen. The root or first node of a data structure should be sent as parameter, as the initial coordinates and orientation.

The last two methods are called from constructor. They will create all necessary SVG groups and other elements, used to better organise the HTML DOM.

3.6. An important file: Constant.js

To improve code abstraction all default values and constants are defined in one single file. This make doing changes to the code a lot easier as changing the values here will affect all the framework. Normally, a parameter responsible for the aspect of an item will receive a value defined in this file.

Let's check some important items declared in this file:

• Constant Enums: many constructors will receive a parameter

  Heres the list containing all of them:

  /**
    * Values used by CoreAnimObject, to control the playing status of the animation.
    *
    * @const
    */
  const ANIMATION_STATUS = {
    PAUSE: 0,
    PLAY: 1,
    STOP: -1
  };

  /**
    * Values used when creating an instance of EdgeObject.
    *
    * @const
    */
  const EDGE_TYPE = {
    UNDIRECTED: 0,
    UNIDIRECTIONAL: 1,
    BIDIRECTIONAL: 2
  };

  /**
    * Values used when creating an instance of EdgeObject.
    *
    * @const
    */
  const EDGE_POSITION = {
    CENTER: 0,
    TOP: 1,
    LEFT: 2,
    BOTTOM: 3,
    RIGHT: 4
  };

  /**
    * Values used when repositioning objects on the screen.
    *
    * @const
    */
  const ORIENTATION = {
    TOP: 1,
    LEFT: 2,
    BOTTOM: 3,
    RIGHT: 4
  }

  /**
    * Types of alerts that can be displayed. Positive is green, Negative is red, information is blue.
    *
    * @const
    */
  const ALERT_TYPES = {
    POSITIVE: "success",
    NEGATIVE: "danger",
    INFORMATION: "info"
  }


• Default IDS, Classes and Properties: to improve code abstraction and keep the visual identity of the framework, many properties, classes and ids are defined here.

  Heres the list containing all of them:

  /**
    * Default class names used across the framework, defined here to improve code abstraction.
    *
    * @const
    */
  const DEFAULT_CLASSES = {
    SHAPE:"shape",
    EDGE:"edge",
    TEXT:{
      INNER:"innerText",
      LABEL:"labelText"
    },
    MARKER:"marker",
    LEARNING_MODE:{
      SHAPE:"learning",
      ACTIVE:"active",
      PLACE_HOLDER:"placeHolder",
      OBJECT_SELECTED:"selected"
    },
    PAGE:{
      ALGORITHM:{
        HIGHLIGHT:"codeHighlight"
      }
    }
  }

  /**
    * Default IDs used across the framework, defined here to improve code abstraction.
    *
    * @const
    */
  const DEFAULT_IDS = {
    PAGE:{
      LOG:"log",
      VARIABLE:"variables",
      ALGORITHM:"algorithm",
      LEARNING_MODE:"chk-learn",
      ANIMATION_DURATION:"animation-duration",
      ALERT_PLACEHOLDER:"alert_placeholder"
    },
    HTML_ELEMENT:{
      ALGORITHM_LINE:"line"
    },
    SVG_GROUP:{
      MAIN:"g-main",
      MARKER:"g-marker",
      SHAPE:"g-shape",
      TEXT:"g-text",
      LABEL:"g-label",
      EDGE:"g-edge"
    },
    SVG_ELEMENT:{
      SHAPE:"shape-",
      USER_SHAPE:"u-shape-",
      TEXT:"text-",
      USER_TEXT:"u-text-",
      LABEL:"label-",
      EDGE:"edge-",
      USER_NEW_OBJ:"protoObj"
    },
    SVG_MARKER:{
      START:{
        DEFAULT:"reverseArrowDefault",
        NULL:"reverseArrowNull"
      },
      END:{
        DEFAULT:"arrowDefault",
        NULL:"arrowNull"
      }
    }
  }

  /**
    * Default properties used across the framework, defined here to improve code abstraction.
    *
    * @const
    */
  const defaultProperties = {
    shape:{
      "radius":25,
      "width":50,
      "height":50,
      "stroke":{
        "default":"black",
        "draggable":"tomato"
      },
      "stroke-width":{
        "default":2,
        "draggable":2
      },
      "fill":{
        "default":"white",
        "draggable":"grey",
        "update":"lightskyblue",
        "delete":"tomato"
      },
      "fill-opacity":{
        "default":1.0,
        "draggable":0.2
      }
    },
    text:{
      "font-family":"sans-serif",
      "font-size":18,
      "text-anchor":"middle",
      "stroke":{
        "default":"black",
        "innerTextBlack":"black",
        "innerTextWhite":"ivory"
      }
    },
    edge:{
      "stroke":{
        "default":"black",
        "null":"tomato"
      },
      "stroke-width":{
        "default":3,
        "null":4
      }
    },
    marker:{
      "width":5,
      "height":3,
      "refX":{
        "start":-7,
        "end":7
      },
      "start":{
        "default": "url(#reverseArrowDefault)",
        "null": "url(#reverseArrowNull)"
      },
      "end":{
        "default": "url(#arrowDefault)",
        "null": "url(#arrowNull)"
      }
    }
  }


Now that you know all the items of the framework it's time to create your own Data Structure Visualisation.

At first, you'll learn how to create a visualisation in Exploration Mode, which means users can interact with the data structure using its methods and the step-by-step animations are going to happen in a pre-defined order.

In a second moment, you'll learn how to develop a Learning Mode for your visualisations. In this mode, the user will be prompted to schedule the changes to the graphics, being able to check the correction of the actions later on.

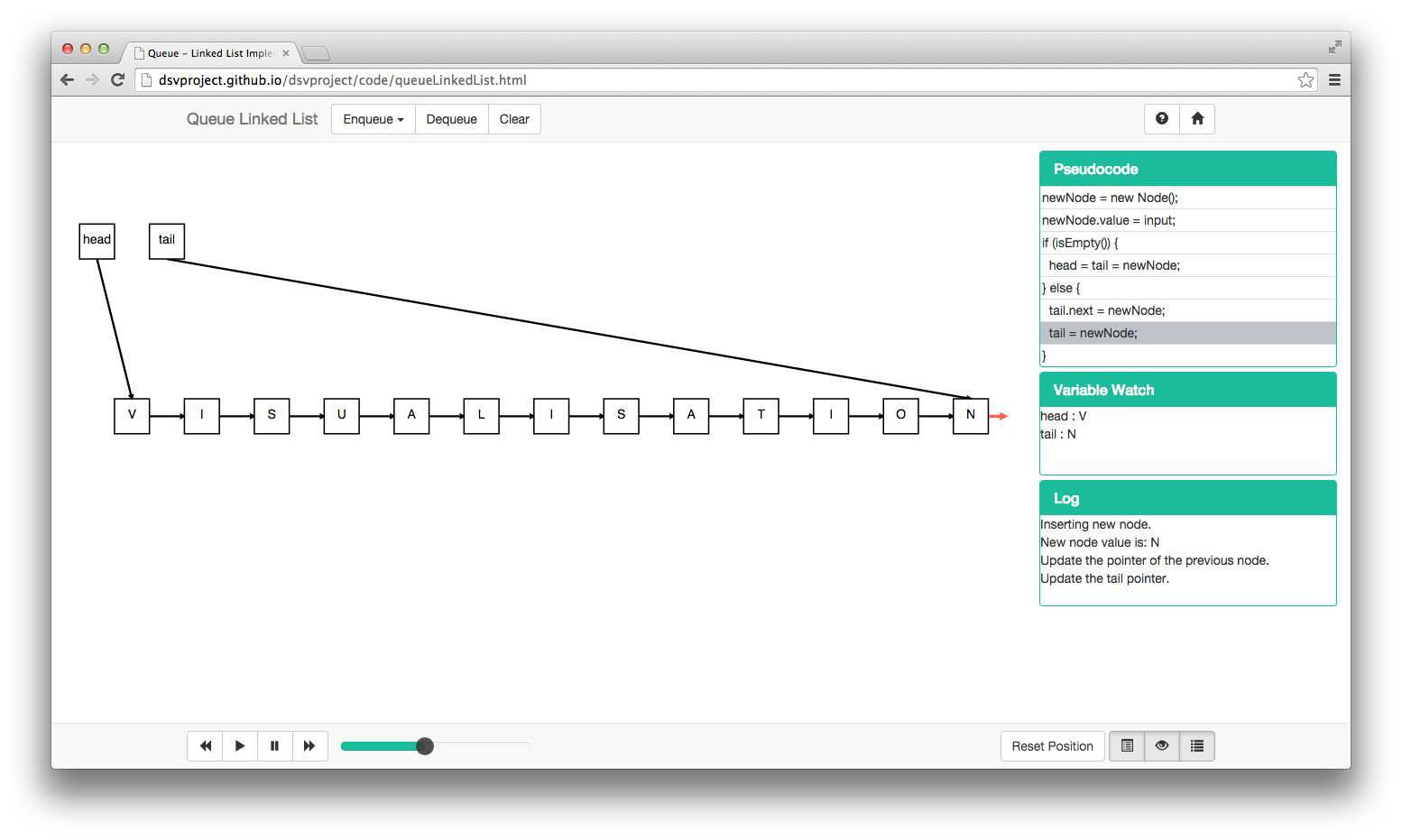

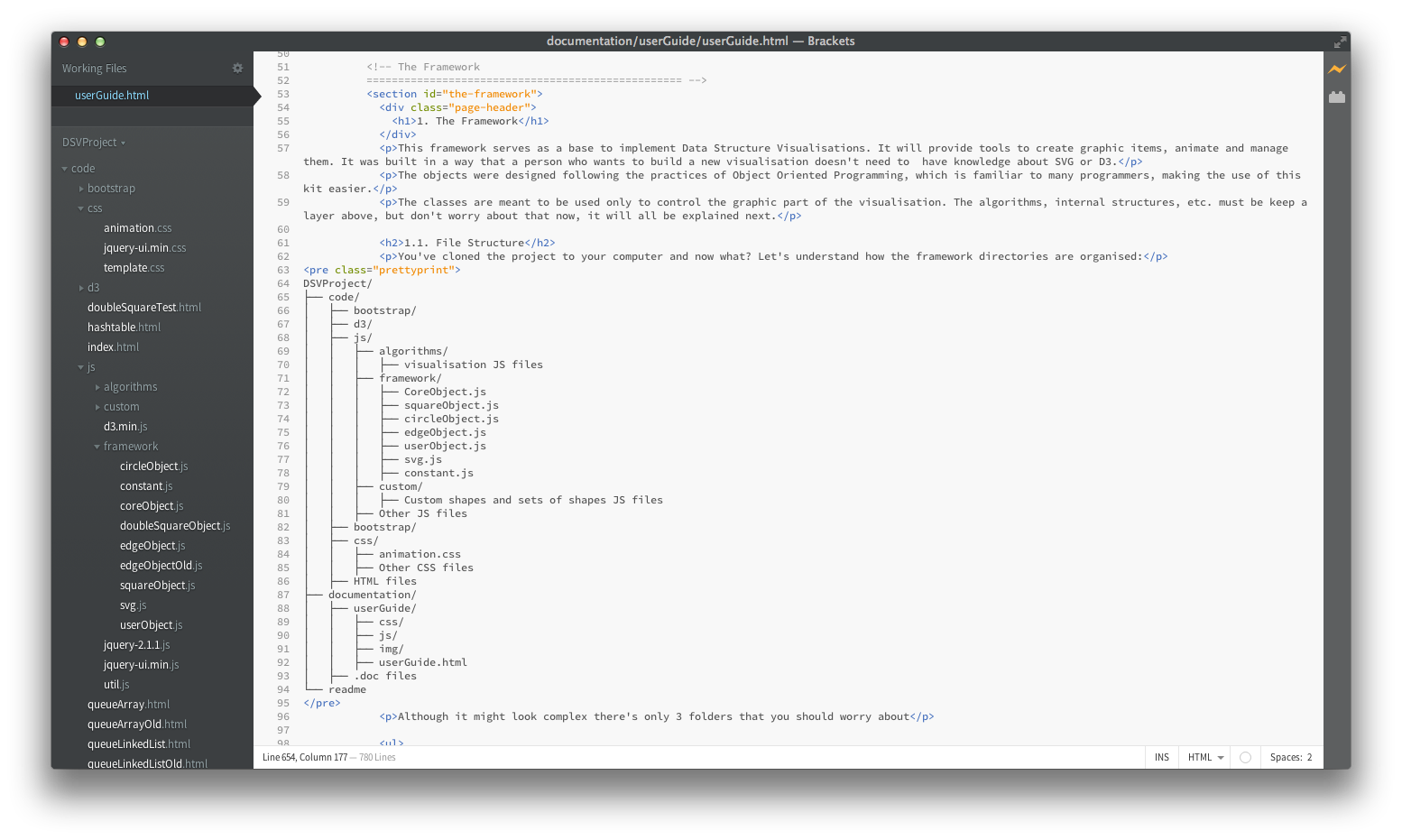

Before we begin we would like to recommend a developing tool: Brackets.

As described in its own website is an open source code editor for web designers and front-end developers. We've used it for the entire development of this tool and found it to be very productive. A few points that we would like to mention:

• Frequent sprints: every four weeks or so a new version of the software is released, with new functionalities and improvements.

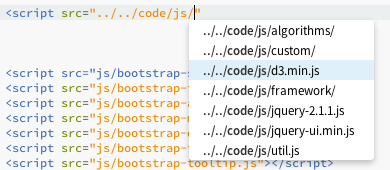

• Code completion: not only for html tags, but your file tree. When inserting files this really come in handy.

• Nice organisation: once you select your working folder it will show your file tree in the sidebar, and a quick access to recently open files.

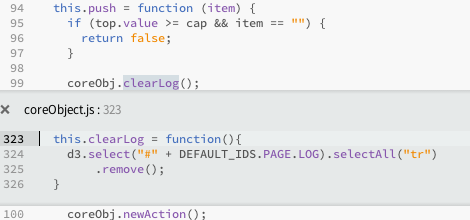

• Quick edit: make changes to functions and styles without even leaving your current working file!


See the contents of a function and make changes on the go.

•

  Preview of images inside the code.

•

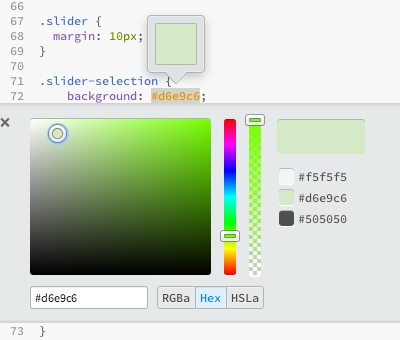

  See the output style while coding.

• Live preview: brackets offers a live preview using Google Chrome, making it possible to see the changes as you code them.
• Customisation: it has support to themes you can make it look the way you want, with different colors to syntax highlight in a way that you won't have to get used to a new pattern.
• It is free.

4.1. The two files

In most cases you will only have to create two files: an HTML and a JavaScript. This will only be different if you decide to create a custom shape or set of shapes, which will take another JavaScript file.

4.1.1. HTML

As seen at the beginning of this guide, the html is at the top of our architecture.

To create the HTML file of your data structure visualisation the first thing you have to do is to copy the template.html provided and rename it to fit the data structure. In you'll find the following lines:

<!-- Template: Page Title --> (line 7)
<!-- Template: Visualisation Title --> (line 37)
<!-- Template: Method's buttons --> (line 42)
  <!-- Template: Text input button (methods that require an input value) --> (line 42)
    <!-- Template: Textbox id, for future reference --> (line 52)
      <!-- Template: onclick function --> (line 55)
  <!-- Template: Normal button (methods that don't require an input value) --> (line 64)
  <!-- Template: Learning Mode Buttons (If not available comment this div tag) --> (line 69)
<!-- Template: Your Visualisation Scripts --> (line 219)
// Template: Your js file instance and calls to methods. (line 223)

Below each of them you'll find the code that needs to be adapted for the new page.

4.1.1.1. The Buttons

For the methods in our visualisations we only use two kinds of buttons: with (a) and without (b) text input.

If a method requires an input, a text box (c) will appear, and the method will be executed after pressing the button. If no input is required the method will be executed immediately.

Below you'll find the html code for each type of button:

• With text input:

<!-- Template: Text input button (methods that require an input value) -->
<div class="btn-group">
  <button type="button" class="btn btn-default navbar-btn dropdown-toggle" data-toggle="dropdown">
    Method Name <span class="caret"></span>
  </button>
  <ul class="dropdown-menu" role="menu">
    <form class="navbar-form prevent-submit">
      <div class="input-group">
        <!-- Template: Textbox id, for future reference -->
        <input id="txt-input" type="text" class="form-control" maxlength="4">
        <span class="input-group-btn">
          <!-- Template: onclick function -->
          <button class="btn btn-default" type="submit" onclick="">
            <span class="glyphicon glyphicon-ok">
          </button>
        </span>
      </div>
    </form>
  </ul>
</div>

• Without text input:

<!-- Template: Normal button (methods that don't require an input value) -->
<button type="button" class="btn btn-default navbar-btn" onclick="">Method Name

There is also the Learning Mode button group that in most cases will be commented, unless you're also going to develop a learning mode for the current visualisation.

Here is how its code looks like:

<!-- Template: Learning Mode Buttons (If not available comment this div tag) -->
<!--
<div id="div-learning-buttons" class="btn-group popover-dismiss" data-popover="popover" data-html="true" data-placement="bottom" title="Learning Mode" data-content="Use this switch to toggle between the <b>Exploration</b> and the <b>Learning</b> modes.<br>In Exploration mode animations will happen automatically.<br>In Learning mode you will have to schedule the changes of each method.">
  <button id="chk-answer-btn" type="button" disabled class="btn btn-default navbar-btn" data-toggle="tooltip" data-placement="bottom" title="Check Answer" onclick="">
        <span class="glyphicon glyphicon-check"></span>
  </button>
  <button id="restart-btn" type="button" disabled class="btn btn-default navbar-btn" data-toggle="tooltip" data-placement="bottom" title="Restart" onclick="">
        <span class="glyphicon glyphicon-repeat"></span>
  </button>
  <button id="cancel-btn" type="button" disabled class="btn btn-default navbar-btn" data-toggle="tooltip" data-placement="bottom" title="Cancel" onclick="">
        <span class="glyphicon glyphicon-remove"></span>
  </button>
  <button type="button" id="chk-learn" class="btn btn-default navbar-btn" data-toggle="tooltip" data-placement="bottom" title="Toggle Mode">Learning Mode</button>
</div>
-->

To make it visible just remove the comment tags (<!-- -->).

4.1.1.2. The scrips

The last thing to be changed in the html file is the scripts. You will have to make reference to the new file and create calls to your methods. For this example we're going to use the StackArray.html file.

<!-- Template: Your Visualisation Scripts -->
<script src="js/algorithms/stackArray.js"></script>

<script type="text/JavaScript">
  var stack = new StackArray();
  var core = stack.getCore();

  function push () {
    var input = $("#txt-input");

    stack.push(input.val());
    input.val("");
  }

  function pop () {
    stack.pop();
  }

  function empty () {
    stack.init();
  }

  // DEFAULT METHODS. DO NOT REMOVE.

  function previous () {
    core.previous();
  }

  function play () {
    core.play();
  }

  function pause () {
    core.pause();
  }

  function next () {
    core.next();
  }
</script>

As you can see in the visualisation above we've referenced our algorithm file in line 2. Then we'll have to create a new instance of our class (line 5). An important method that every algorithm js file should have is this:

This method is called in line 6, and will allow us to call the default media control methods (from line 23 until the end of the script).

Other than that you should create calls for the methods in your class, sending inputs if required, making use of the ids defined on the creation of the html buttons (line 9).

3.1.2. JavaScript

In our architecture, the JavaScript file is right under the HTML and interacting directly with the core.

To create the JS file of your data structure visualisation we recommend that you use the template.js file provided as it follows some guidelines of our framework. Here's how it looks like:

/**
  * Defines a Pointer object, that contains:
  *   {Number} value
  *   {Object} drawing : an instance of one of the basic shapes (squareObject, nodeObject, etc)
  *   {Object} edge : an instance of the edgeObject
  */
var Pointer = function () {
  var value;
  var drawing;
  var edge;
}

/**
  * Defines a Stack object (Array implementation). Used to keep track of the object internally and to interact with the animations.
  */
var Template = function(){
  var self = this;
  var coreObj = new CoreObject();

  // CONSTANTS FOR ALGORITHM TRACK GENERATION
  const PUSH = 0,
        POP = 1;

  // CREATE INITIAL ITEMS IF ANY
  coreObj.newStateList();

  var cap = 16;
  var top = new Pointer();
  var mArray = [];

  for (var i=0; i<16; i++){
    mArray[i] = coreObj.newSquareObject(i, (i+1)*50, 300, null, i, null, null, null);
  }

  top.value = 0;
  top.drawing = coreObj.newSquareObject("top", 50, 50, 0, "top", null, null, null);

  top.edge = coreObj.newEdgeObject("top", top.drawing.getID(), mArray[top.value].getID(), null, EDGE_TYPE.UNIDIRECTIONAL, EDGE_POSITION.BOTTOM, EDGE_POSITION.TOP);

  coreObj.saveState();
  coreObj.begin(0);

  // DEFAULT METHODS
  this.getCore = function () {
    return coreObj;
  }

  this.generateAlgorithm = function (command) {
    coreObj.clearAlgorithm();

    switch (command) {
        case PUSH:
          coreObj.addAlgorithmLine(lineNo, "Instruction");
          break;
        case POP:
          coreObj.addAlgorithmLine(lineNo, "Instruction");
          break;
    }
  }

  // PARTICULAR METHODS

  this.init = function() {...}

  this.isEmpty = function () {...}

  this.push = function (item) {...}

  this.pop = function () {...}
}

Now let's understand what's happening in there.

4.1.2.1. Organising the data and the graphics

As we've seen when studying the factories in CoreObject each graphic object created is returned to this class for you to manage. This will give you access to each instance, making it easier to do necessary graphic changes.

Let's pick a few examples to have an idea of how to manage all this:

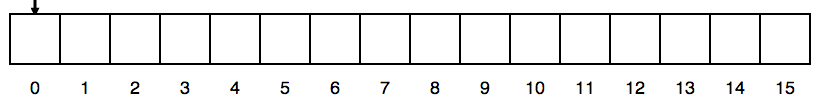

• Array: in certain cases it will be possible to run the algorithms using only the graphic part, like in Array implementations.

  for (var i=0; i<16; i++){
    mArray[i] = coreObj.newSquareObject(i, (i+1)*50, 300, null, i, null, null, null);
  }


  Since you have the instance of your graphic object, to access its properties all you have to do is:

  mArray[top.value].getText();

  mArray[top.value].setText(item);


  Just like in other OO languages, using "." will grant access to the class methods.

• Node: in most of the cases an auxiliar data structure will be required. To explain this we will be using a Tree Node as example.

  Normally this is the content of a Node:

  var Node = function () {
    var value;
    var key;
    var leftChild;
    var rightChild;
  }


  In these variables we're going to store the data referring to this Node, and the instances of its children. But we also need to keep track of the visual structures, so let's see what will change:

  var Node = function () {
    var value;
    var key;
    var leftChild;
    var rightChild;

    var drawing;
    var leftEdge;
    var rightEdge;
  }


  We still have all the data variables, but now we also have variables to store instances of the graphic objects, that just like in the array example will enable us to make changes to the properties as we run our algorithms.

  To make it even more clearer, let's take a look at this snipt:

  this.root = new Node();

  root.value = newValue;
  root.key = newKey;
  root.leftChild = null;
  root.rightChild = null;

  root.drawing = coreObj.newCircleObject(newKey, this.getCX(), this.getCY(), defaultProperties.radius, newValue, null, null, null, null);
  root.leftEdge = coreObj.newEdgeObject(newKey + "l", root.drawing.getID(), null, null, EDGE_TYPE.UNIDIRECTIONAL, EDGE_POSITION.CENTER, EDGE_POSITION.TOP);
  root.rightEdge = coreObj.newEdgeObject(newKey + "r", root.drawing.getID(), null, null, EDGE_TYPE.UNIDIRECTIONAL, EDGE_POSITION.CENTER, EDGE_POSITION.TOP);


  In it we're creating a new Node and making it root of our tree. Now let's see what would happen if we would insert a new Node on the left subtree:

  var newNode = new Node();

  newNode.value = newValue;
  newNode.key = newKey;
  newNode.leftChild = null;
  newNode.rightChild = null;

  newNode.drawing = coreObj.newCircleObject(newKey, this.getCX(), this.getCY(), defaultProperties.radius, newValue, null, null, null, null);
  newNode.leftEdge = coreObj.newEdgeObject(newKey + "l", root.drawing.getID(), null, null, EDGE_TYPE.UNIDIRECTIONAL, EDGE_POSITION.CENTER, EDGE_POSITION.TOP);
  newNode.rightEdge = coreObj.newEdgeObject(newKey + "r", root.drawing.getID(), null, null, EDGE_TYPE.UNIDIRECTIONAL, EDGE_POSITION.CENTER, EDGE_POSITION.TOP);

  this.root.leftChild = newNode;
  this.root.leftEdge.setIdObjectB(newNode.drawing.getID());


  We create a new node just as we did before, then we update the data (line 12) and then the graphics (line 13).

  By doing this we can keep the data and the graphics apart from each other, but still easy to manage and access then. In the tree example, you would be able to use recursion to iterate through the tree by having pointers to the children (leftChild and rightChild) and while doing that you can change the edge properties to let the user know what's happening, by having an easy access to leftEdge and rightEdge.

4.1.2.2. Default variables

There are only four default variables that have to be declared:

• this.self: current value of this, useful for scope issues.
• this.coreObj: the instance of CoreObject.js, that will create objects and control the animation.
• this.learnObj: optional, used to store Learning Mode objects.
• Constants: values used to create the appropriate algorithm set.

4.1.2.3. Initial Items

In certain visualisations some initial graphic elements may be necessary. For example, in an Array implementation you'll have to display the array itself.

To achieve this you'll have to create all these items in here as this lines of code will execute as this class is instantiated and the graphics will be displayed as soon as the page load.

4.1.2.4. Default Methods

The two important default methods are:

• this.getCore: this method will return the instance of CoreObject.js to the HTML file.
• this.generateAlgorithm: this method will fill the algorithm panel when executing a method.

4.1.2.5. Particular Methods

Any method related to this data structure, that will be called from the HTML file.

Here's some important details that you should pay attention to:

// Example from StackLinkedList.js
this.pop = function() {
  // IMPORTANT: Any consistency verification must be done in this layer, before making changes to the graphics or data structure
  if (this.isEmpty()) {
    return false;
    coreObj.displayAlert(ALERT_TYPES.NEGATIVE, "The stack is already empty.");
  }

  this.generateAlgorithm(POP);
  // IMPORTANT: Always create a new state list for the current animation
  coreObj.newStateList();

  ...

  // IMPORTANT: After making all necessary changes to the data structure and graphics call begin to initilise the animation
  coreObj.begin();
}

4.2. Custom Items

The basic classes provided in this framework are meant to cover all necessary items to implement a data structure visualisation, but there is still room for customisation.

4.2.1. Custom Sets

Custom sets can be useful when creating initial shapes. If there's a lot of visualisations that will use an array why not create a custom set just for that? Let's see how the code of a custom set would look:

/**
  * Defines a Pointer object, that contains:
  *   {Number} value
  *   {Object} drawing : an instance of one of the basic shapes (squareObject, nodeObject, etc)
  *   {Object} edge : an instance of the edgeObject
  */
var Node = function () {
  var item,
    pointer,
    drawing,
    edge;
}

/**
  * Defines an Array of Squares with pointers.
  *
  * @param {!CoreAnimObject} coreObj : instance of the CoreAnimObject class.
  * @param {!Number} positions : number of positions of the array.
  */
var ArrayPointer = function (coreObj, positions) {
  var self = this;
  this.coreObj = coreObj;

  var mArray = [];

  for (var i=0; i<positions; i++){
    mArray[i] = new Node();

    mArray[i].item = null;
    mArray[i].drawing = coreObj.newSquareObject("a" + i, (i+1)*50, 400, null, i, null, null, null);
    mArray[i].edge = coreObj.newEdgeObject("a" + i, mArray[i].drawing.getID(), null, null, EDGE_TYPE.UNIDIRECTIONAL, EDGE_POSITION.TOP, EDGE_POSITION.BOTTOM);
  }

  return mArray;
}

In this example we're creating an array of Squares with pointers, and for this we'll make use of an auxiliary structure (Node, line 7). Than we'll make use of the instance of CoreObject passed as parameter to create all objects that we'll need.

The main difference between creating a custom shape and a custom set is that in the second case you'll send back all the shapes created for who called this function to manage, so you don't have to worry about creating the methods again.

Let's see an example of this:

var Hashtable = function () {
  var self = this;
  var coreObj = new CoreObject();

  coreObj.newStateList();
  coreObj.saveState();

  var mArray;

  mArray = new ArrayPointer(coreObj, 15);

  coreObj.saveState();

  coreObj.play();
}

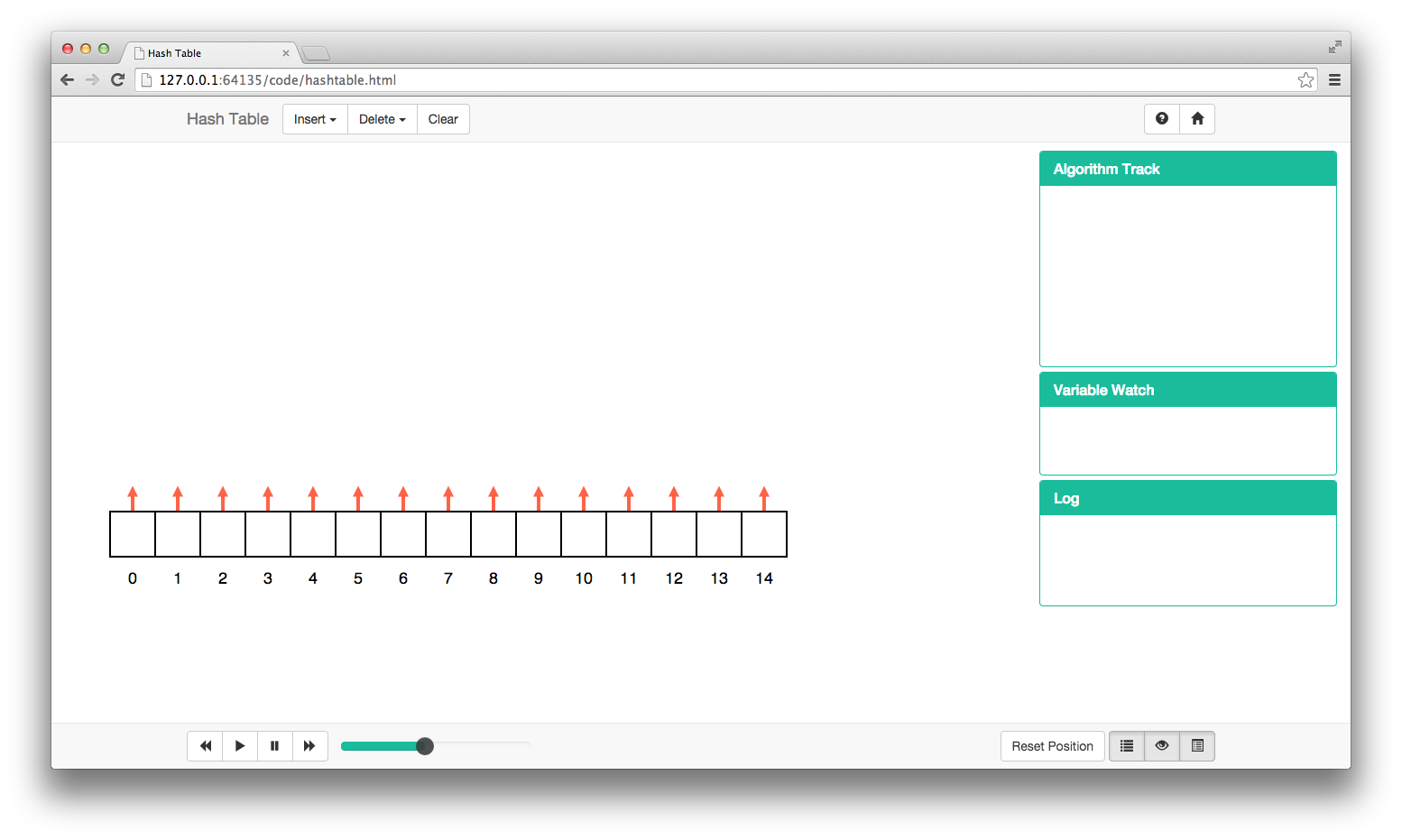

Which will result in:

That makes the processes of creating initial shapes smoother and the code clearer.
